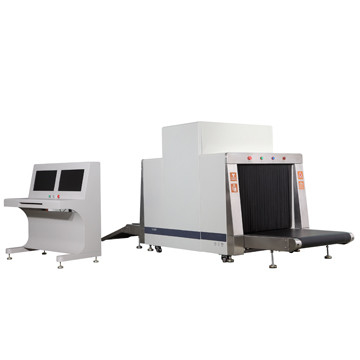

Lightweight X Ray Security Scanner With 17 Inch High Resolution Monitor For Buildings

Lightweight X Ray Security Scanner With 17 Inch High Resolution Monitor For Buildings

Competitive Advantage:

Alarm by sounds & light : Alarm by sounds and light when conform to condition

Image monitoring for user-friendly: the monitor use fold , rotary system, operators adjusts the monitor position willfully according to own need , reduces wearily

Description:

X-ray generator:

Orientation: vertically upward

Tube current: 0.4 to 1.2mAh (adjustable)

Anode voltage: 100 to 160kV (adjustable)

Angle: 80°

Generator cooling/working periods sealed oil bath with forced air/100%

Image performance system:

X-ray sensor: l type photo-diode array detector, 12 bits

Monitor: high resolution 17-inch color LCD display

Color quality: 24-bit real colors

Edge enhancement: object contour edge is more distinct

Super image enhancement: image detail is more distinct

High penetrate strength display: increase brightness of dark area in image to display object which is behind high absorptivity mass distinctly

Low penetrate strength display: increase contrast of low absorptivity mass (easy to penetrate) to display it distinctly

Magnifier: function of partial enlargement

Brightening/dimming: increase brightness of image/decrease brightness of image

Image recurrence: display previous twenty images and process any one of them

Image restoration: restore image to initial status at the time of stopping conveyor

Image storing: real-time store any image and process it in operation status

Operating environment:

Storage temperature: -20 to 60°C

Operating temperature: 0 to 45°C

Relative humidity: 20 to 95% non-condensing

System power: 220V AC (±10%) 50 ± 3Hz

Power wastage: 1.5kW (maximum)

Noise: <65dB

Packing: 1pc/2 carton, 8.8cbm

Gross weight: 1,600kg

Applications:

Airports,

Transport terminals,

Buildings,

Factories (to find needle in clothing,  shoes,  bags),
Courthouses,
Embassies,
Military installations,

Prisons,
Hotels,
Schools ,

Convention centers,
Security checkpoints,

Special events location

Specifications:
