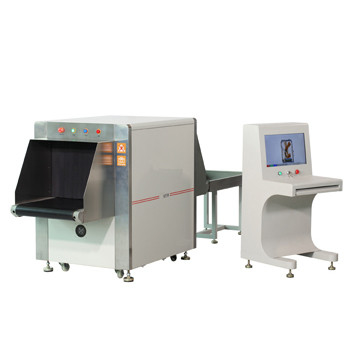

Portable X-ray Baggage Machine 100kV - 160kV Anode Volta With 200kg Conveyor Maximum Load
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | digital x ray machine,baggage x ray machine |
||
|---|---|---|---|
Portable X-ray Baggage Machine 100kV - 160kV Anode Volta With 200kg Conveyor Maximum Load
Competitive Advantage:
Network interface : Could be connect local area network and support multi terminal check baggage at same times
Versatile Screening System
Compact Design
Portable
Cost Effective
Designed for rapid relocation and can be wheeled through narrow doorways, making it an excellent system for schools, hotels, convention centers and event-based security environments.
Description::
Feature:
Alarm by sounds and light: alarm by sounds and light when conform to condition
Network interface could be connect local area network and support multi-terminal check baggage at same times
Safety ray: transmit ray under automatic control, avoids the miss
Simple operation by mouse: without keyboard and work table, control by mouse, save space
Turn off by a key control: turn off the machine only need one step, revolves the key
The equipment automatic security close-down, does not need complex many steps, is simpler
Eagle-eye: could be expediently observing enlargement area
Estimate malfunction by self: automatic estimate malfunction and prompt message, helpful for the maintenance
With Threat Image Projection (TIP): which can record the dangerous items’ information ,and when detect the dangerous item, it will have the voice alarm.
X-ray generator:
Orientation: vertically upward
Tube current: 0.4 to 1.2mA (adjustable)
Anode voltage: 100 to 160kV (adjustable)
Angle: 80°
Generator cooling/working periods: sealed oil bath with forced air/100
Operating environment:
Storage temperature: -20 to 60°C
Operating temperature: 0 to 45°C
Relative humidity: 20 to 95% non-condensing
System power: 220V AC (±10%) 50 ± 3Hz
Power wastage: 1.0kW (maximum)
Noise: <65dB
Packing: 1pc/carton, 3.5CBM
Carton size: 205 x 95 x 135cm
Carton size (with plank/shelf): 125 x 75 x 85cm
Weight/carton: 750 kg
Applications:
schools, hotels, convention centers and event-based security environments
Specifications:
|
Tunnel size: |
650 x 500 mm |
|
Conveyor speed: |
0.22 m/s |
|
Conveyor maximum load: |
200kg |
|
Single inspection dosage |
<1.5µgy |
|
Wire resolution |
0.1 mm metal line |
|
Steel penetration: |
40 mm armor plate |
|
Film safety: |
for ISO 1600 |
|
Maximum leakage radiation |
<0.3 µgy /hr |
