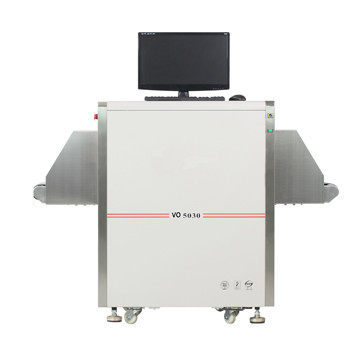

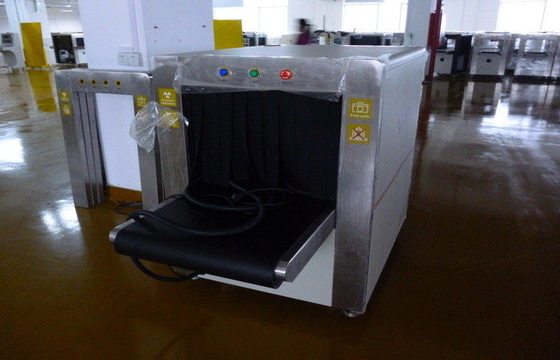

Automatic X-ray Baggage Machine 38mm Armor Plate Steel Penetration With 500 x 300mm Tunnel

Automatic X-ray Baggage Machine 38mm Armor Plate Steel Penetration With 500 x 300mm Tunnel

Wide range of image enhancement features

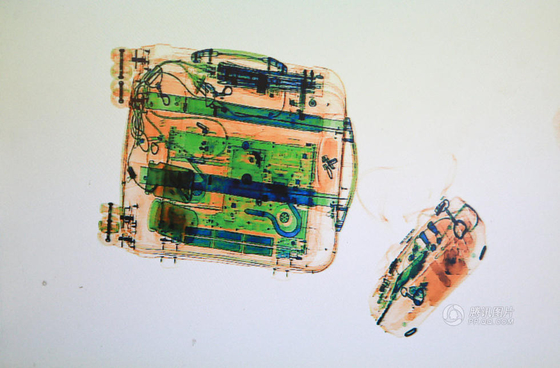

Organic and Inorganic material discrimination

Crystal Clear Image optimisation feature

Image archive to harddisk or memory stick

Feature:

Alarm by sounds and light: alarm by sounds and light when conform to condition

Network interface: could be connect local area network and support multi-terminal check baggage at same times

Safety ray: transmit ray under automatic control, avoids the miss

Image monitoring for user-friendly: the monitor use fold, rotary system, operators adjusts the monitor position willfully according to own need, reduces wearily

Simple operation by mouse: without keyboard and work table, control by mouse, save space

Turn off by a key control: turn off the machine only need one step, revolves the key

The equipment automatic security close-down, does not need complex many steps, is simpler

Eagle-eye: could be expediently observing enlargement area

Estimate malfunction by self: automatic estimate malfunction and prompt message, helpful for the maintenance

X-ray generator:

Orientation: vertically upward

Tube current: 0.4  to 1.2mAh (adjustable)

Anode voltage: 100 to 160kV (adjustable)

Angle: 80°

Generator cooling/working periods sealed oil bath with forced air/100%

Image performance system:

X-ray sensor: l type photo-diode array detector, 12bit

Monitor: high resolution 17-inch color LCD display

Color quality: 24-bit

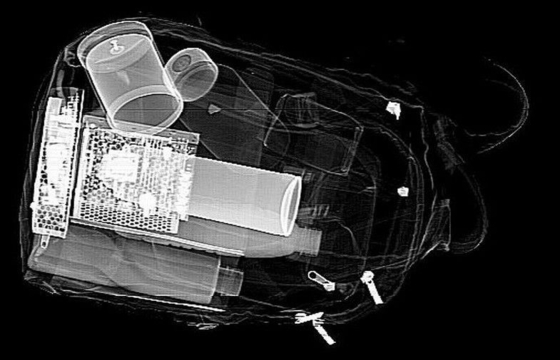

Edge enhancement: object contour edge is more distinct

Super image enhancement: image detail is more distinct

High penetrate strength display: increase brightness of dark area in image to display object which is behind high absorptivity mass distinctly

Low penetrate strength display: increase contrast of low absorptivity mass to display it distinctly

Magnifier: function of partial enlargement
