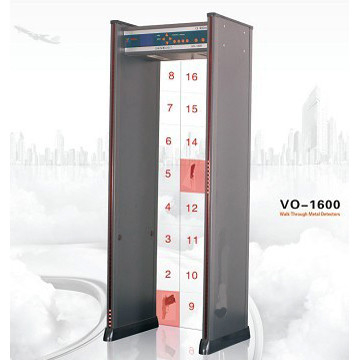

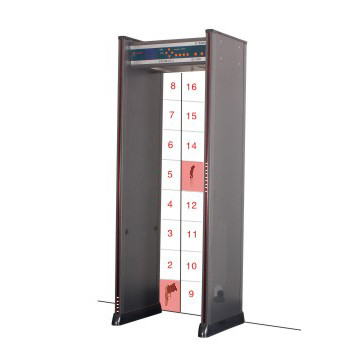

VO-1600 Walk-through Door Metal Detector Remote Control with 16 Detect Zone for Electronic Factory

VO-1600 Walk-through Door Metal Detector Remote Control with 16 Detect Zone for Electronic Factory

VO-1600 Walk-through Metal Detector with One-key Restoration of Factory Setting and DSP

Remote Control  with 16 Detect Zone for Electronic Factory

16 zones, with LCD and remote control, 8 detecting areas spreading evenly over the left and right detecting gate boards.

Functions and characters:

1. The whole product is consisted of two parts:

Left-right detecting gate + Mainframe

The mainframe is using a very friendly design e.g. water-proof and anti-visual blind designs.

2. There are 8 detecting areas spreading evenly over the left and right detecting gate boards respectively from its top to bottom with built-in super shining LED indicating lights; therefore, it is called a 16 positions LED display detecting.

3. Independent detecting in left-right regions. The LED indicating lights in left-right regions will display independently; the maximum sensitivity will detect 1-yuan coin; for example, when it detects a metal in the left region, the left-side LED indicating light will turn on while right-side LED indicating light keeps off; it will tell you the metal is locating at some area in the left region.

4. Information will be marked down on the super-large LCD front panel e.g. number of persons passed-by, times of alarm, strength of interfering signals, remote-controlled receiver, etc.

5.     The control circuit, collecting circuit and calculation circuit are highly integrated, which are especially stable in performance, strong in anti-interference, exact in detecting and free from mistakes in reporting.

3.     The special remote controller is prepared to adjust all functions, power on or off the device easily.

6.     When connecting with power, the device will automatically turn on, diagnose and adjust.

4.     Sole detecting area can adjust its sensitivity privately, without coordination to adjust the overall sensitivity; it can be adjusted in 100 degrees within its scope; therefore, it can meet the customers demand to reject the items e.g. belt buckle, gold or silver jewelry, etc.

7.     Has the function of password protection to prevent any hostile change of parameters by any unauthorized person.

5.     Has the function of Recover systematic parameters by one-key; when you make some mis-operations, you may recover all ex-work settings just by one key.

8.     The product can display detecting in sole region or display the detecting of multi regions at the same time. For example, if there are metals in No. 3 and No. 5 regions at the same time, the LED indicating lights will turn on in both No. 3 and No. 5 regions.

6.     Has the function of 3-grade audio tones adjustment, adapting to different usage environments.

9.     Eight work frequency spots are set up in an array; standard distance to

assemble the gates is 50 CM.

14. The product does no harm to cardiac pacemaker in human body, hearing aid, pregnant woman and CD compact disc, etc.
